Cherry Valley Heavy Rescue 541
Here is a look at Heavy Rescue 541 from Cherry Valley in Northern Illinois. Cherry Valley Fire Rescue is very active in extrication challenges and usually sends a team to Crunch Time Extrication Learning Symposium every hosted by the Harlem Roscoe Fire District every fall.

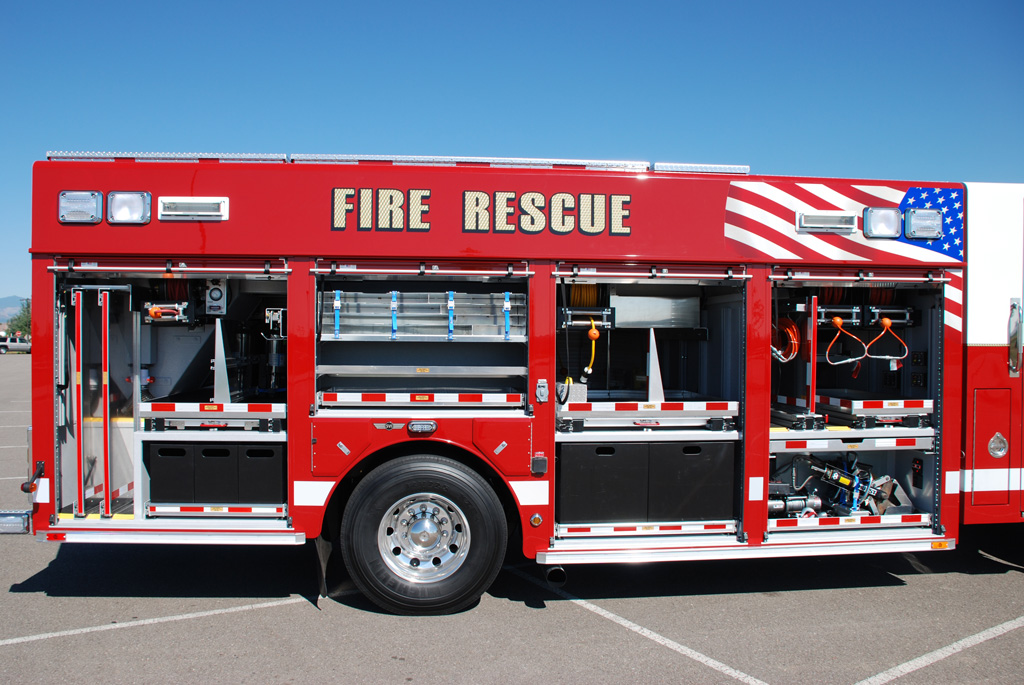

Compartment Layouts:
20′, 3/16″ formed aluminum walk-around body, five (5) 1,000# slideout trays, nine (9) 400# slideout trays, two (2) 250# out/down trays, three (3) toolboards, adjustable shelving, six (6) hydraulic reels, two (2) electric reels, two (2) LP air reels, airbag storage, fender SCBA storage, little giant ladder storage, fuel storage cabinet, four (4) 1,000W side recessed scene lights, rear stairway w/integrated ladder storage, five (5) upper body compts, one (1) Command Light CL615-2MH-BL light tower.
Hydraulic System: Hurst Octoflow, six (6) reels (2 front bumper, 4 body compts.).
Air System: Six (6) ASME air storage cylinders, one (1) Bauer CFSII 1-position fill station w/ cascade controls, two (2) LP air reels.
Spartan Gladiator LFD 10″ RR cab/chassis, GVWR: 48,500#, WB: 215″, 21,500# front axle, 27,000# rear axle, Cummins ISM 500HP engine, Allison 4000 EVP transmission, 31″ extended front bumper (2 hydraulic reels, 4 hydraulic tools, speakers, airhorns, Q2B siren), seating for five (5) people, two (2) FRC 1,500W brow lights, one (1) Pioneer LED brow light, David Clark intercom system, four (4) flashlights.
OAL: 36′-2″ OAW: 9′-10″ OAH: 9′-11″
Delivered Weights: Front: 18,220 lbs. Rear: 17,340 lbs. Total: 35,560 lbs.
Download the drawings and specifications from SVI Trucks:
Fountain (Keyser), WV Heavy Rescue Walk-In
When spec’ing its new Heavy Rescue, the Keyser, WV Fountain Volunteer Fire Company chose a 23′ aluminum SVI body mounted on a Sutphen 73″ chassis, which houses a Cummins X12 455 HP engine. This special operations apparatus comes with a Onan Protec 25k-watt PTO generator, Command Light Knight Series light tower, Girard retractable lateral arm awning, walk-in area with bench seat, desk, storage cabinets and much more.
Below are links to more information about this heavy rescue:
Overall Pictures
Compartments Pictures
Cab Pictures
Front Pictures
Rear Pictures
Rooftop Pictures
Rescue Rigs
Warwick Fire Department Special Hazards 1
The new Special Hazards 1 will provide the department with improved capabilities, including the ability to deploy tech rescue equipment on 3 sides of the truck.
Warwick Fire Department Special Hazards 1
The new Special Hazards 1 will provide the department with improved capabilities, including the ability to deploy tech rescue equipment on 3 sides of the truck.
- Engine: Cummins X12
- Transmission: Allison EVS 4000
- Model: Cyclone II | Walk-In Rescue
- Electronic Stability Control
Overall Pictures
Compartments Pictures
Cab Pictures
Front Pictures
Rear Pictures
Rooftop Pictures
Alamance County Rescue Unit Heavy Rescue
EVI custom modular 24-Ft Non-Walk-In heavy duty body with rooftop compartments. Mounted on a Spartan Gladiator 20″ raised roof, long four-door chassis with seating for five and powered by a Cummins X12 500 HP engine. The unit includes ROM-painted roll-up compartment doors, an assortment of adjustable shelves, trays, swing-out tool boards, lumber/cribbing storage, two(2) Zico turntable extrication tool holders, toolbox, airbag storage rack, rooftop speedy-dry dispenser, toolbox, Duo-Safety ladders and more. Other key components include a 35 KW Onan PTO generator, electric cord reel, Will-Burt Sirion LED light tower, hydraulic reels, and a portable Warn 10,000-pound winch. LED lighting on the heavy rescue is provided by Whelen, FireTech/HiViz, Roto-Ray, Tri-Lite, and Amdor.
| Dealer | Hendrickson Fire Rescue Equipment |
| State / Town | New York |
| Chassis Mfg/Chassis Model | Spartan/Spartan Gladiator |
| Chassis Model Year | 2020 |
| Overall Height | 11’8″ |
| Overall Length | 40’9″ |
| Engine | Cummins X15 |
| Transmission | Allison Gen V-E |
| Module Length/Interior Headroom | 25’/76″ |
Below are links to more information about this heavy rescue:
- Production Specification
- Features (Flyer)
- CAD Drawing
