Compartment Tool Mounting
Strut Storage

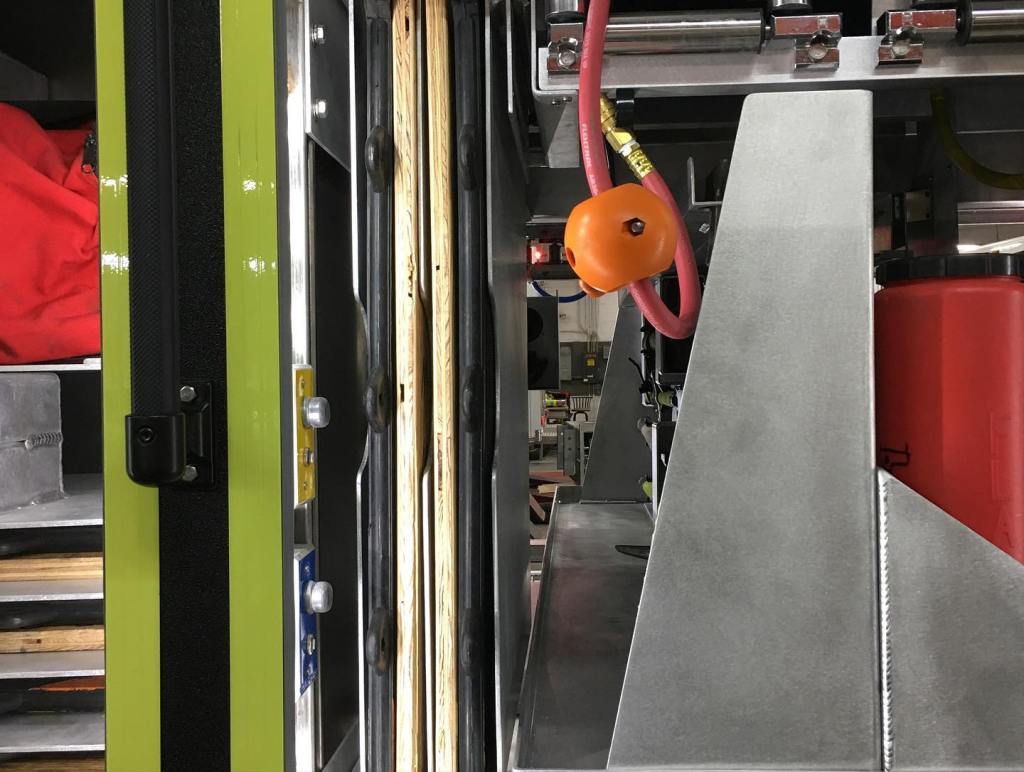

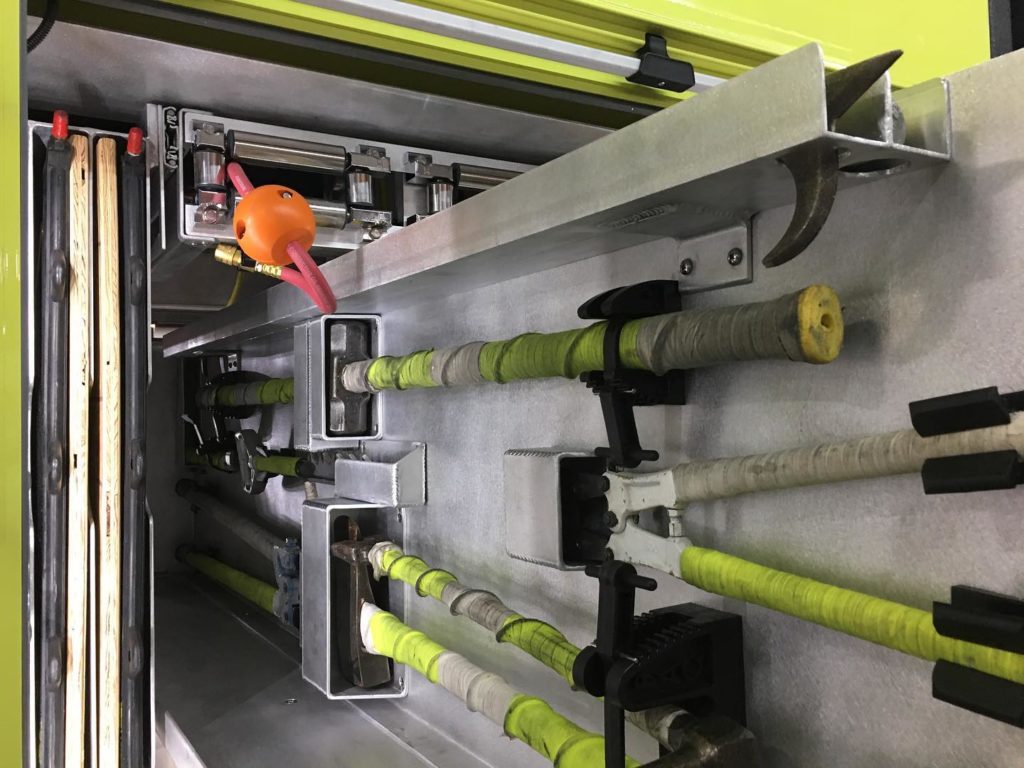

When it comes to tool and equipment mounting on heavy rescues or any apparatus for that matter. Two main options are available, off the shelf mounts or custom fabricated mounts. However, a third option is a blend of custom and off the shelf mounts that you can see in the pictures below with the hand tools.
Poly-Tech
Airbag Storage
Custom airbag holders are typical installed horizon as scene in the picture below. However, larger airbags and ground plates can also be built to store the them vertically in an apparatus. Also consider any future airbags that the truck my have. It would be a mistake to leave wasted space around airbag compartments that could be used in the future.
Fountain (Keyser), WV Heavy Rescue Walk-In
When spec’ing its new Heavy Rescue, the Keyser, WV Fountain Volunteer Fire Company chose a 23′ aluminum SVI body mounted on a Sutphen 73″ chassis, which houses a Cummins X12 455 HP engine. This special operations apparatus comes with a Onan Protec 25k-watt PTO generator, Command Light Knight Series light tower, Girard retractable lateral arm awning, walk-in area with bench seat, desk, storage cabinets and much more.
Below are links to more information about this heavy rescue:
Overall Pictures
Compartments Pictures
Cab Pictures
Front Pictures
Rear Pictures
Rooftop Pictures
Rescue Rigs
Warwick Fire Department Special Hazards 1
The new Special Hazards 1 will provide the department with improved capabilities, including the ability to deploy tech rescue equipment on 3 sides of the truck.
Warwick Fire Department Special Hazards 1
The new Special Hazards 1 will provide the department with improved capabilities, including the ability to deploy tech rescue equipment on 3 sides of the truck.
- Engine: Cummins X12
- Transmission: Allison EVS 4000
- Model: Cyclone II | Walk-In Rescue
- Electronic Stability Control
Overall Pictures
Compartments Pictures
Cab Pictures
Front Pictures
Rear Pictures
Rooftop Pictures
Alamance County Rescue Unit Heavy Rescue
EVI custom modular 24-Ft Non-Walk-In heavy duty body with rooftop compartments. Mounted on a Spartan Gladiator 20″ raised roof, long four-door chassis with seating for five and powered by a Cummins X12 500 HP engine. The unit includes ROM-painted roll-up compartment doors, an assortment of adjustable shelves, trays, swing-out tool boards, lumber/cribbing storage, two(2) Zico turntable extrication tool holders, toolbox, airbag storage rack, rooftop speedy-dry dispenser, toolbox, Duo-Safety ladders and more. Other key components include a 35 KW Onan PTO generator, electric cord reel, Will-Burt Sirion LED light tower, hydraulic reels, and a portable Warn 10,000-pound winch. LED lighting on the heavy rescue is provided by Whelen, FireTech/HiViz, Roto-Ray, Tri-Lite, and Amdor.
| Dealer | Hendrickson Fire Rescue Equipment |
| State / Town | New York |
| Chassis Mfg/Chassis Model | Spartan/Spartan Gladiator |
| Chassis Model Year | 2020 |
| Overall Height | 11’8″ |
| Overall Length | 40’9″ |
| Engine | Cummins X15 |
| Transmission | Allison Gen V-E |
| Module Length/Interior Headroom | 25’/76″ |
Below are links to more information about this heavy rescue:
- Production Specification
- Features (Flyer)
- CAD Drawing
