Rescue Rigs

Washington Township Fire Department Heavy Rescue

Published

on

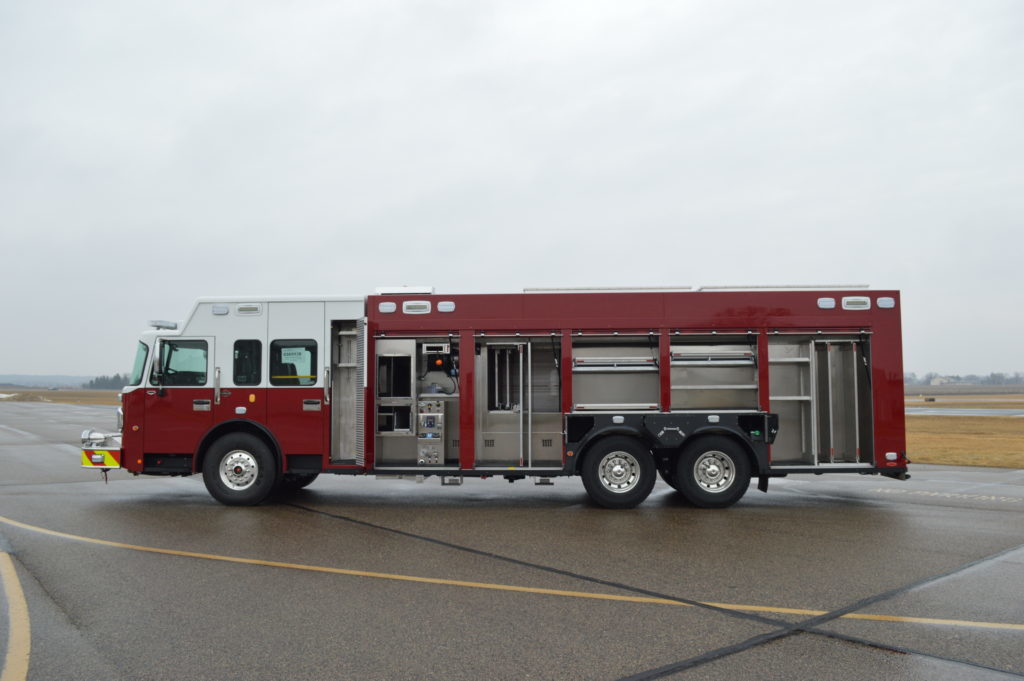

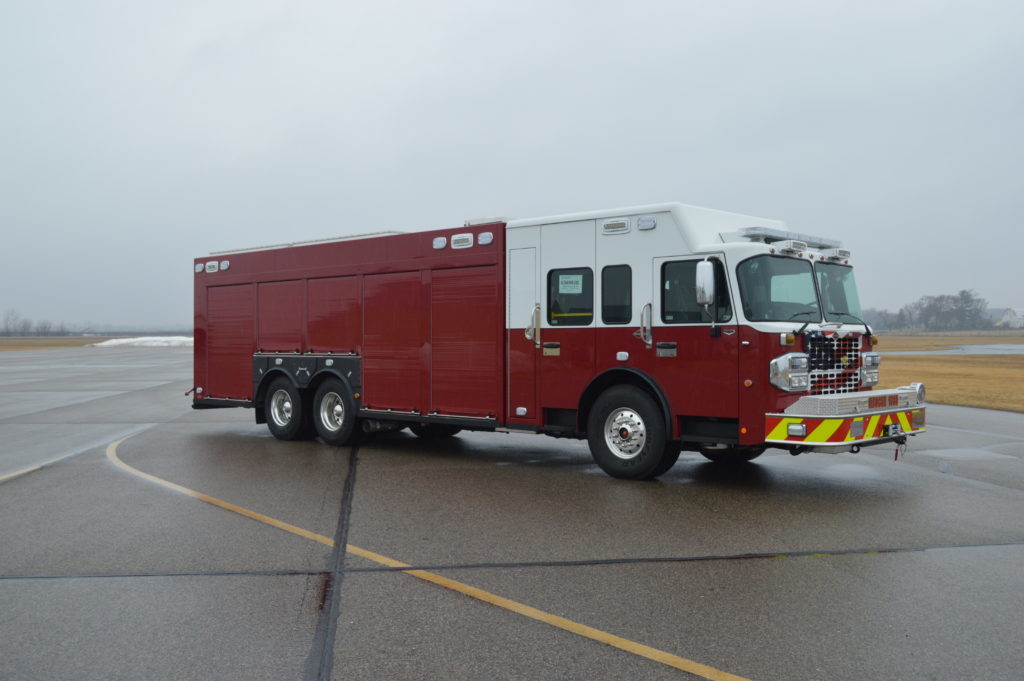

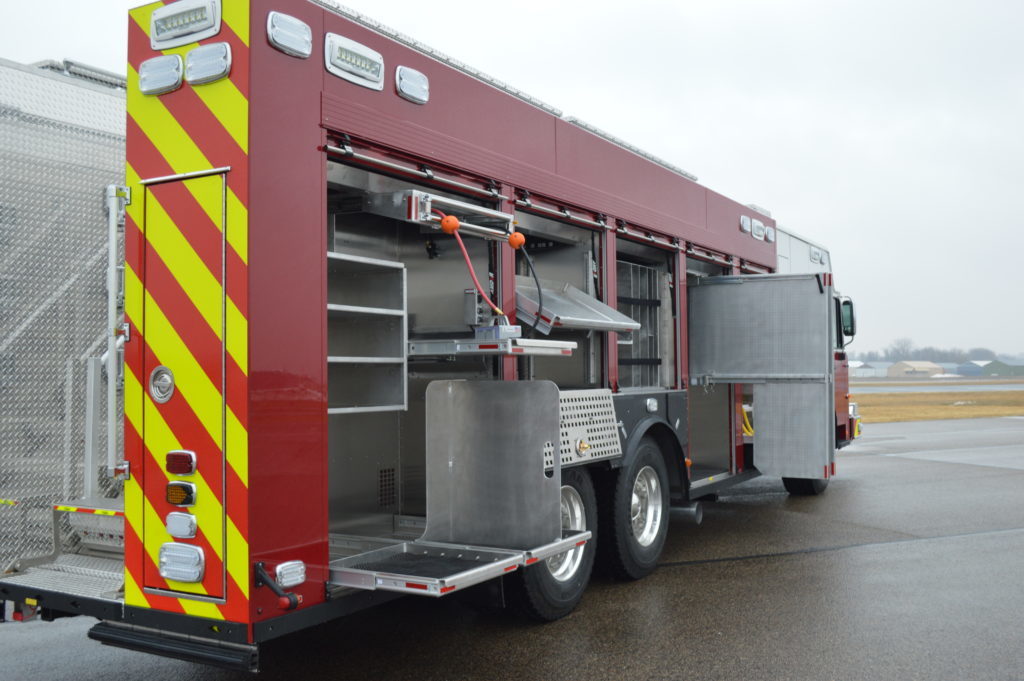

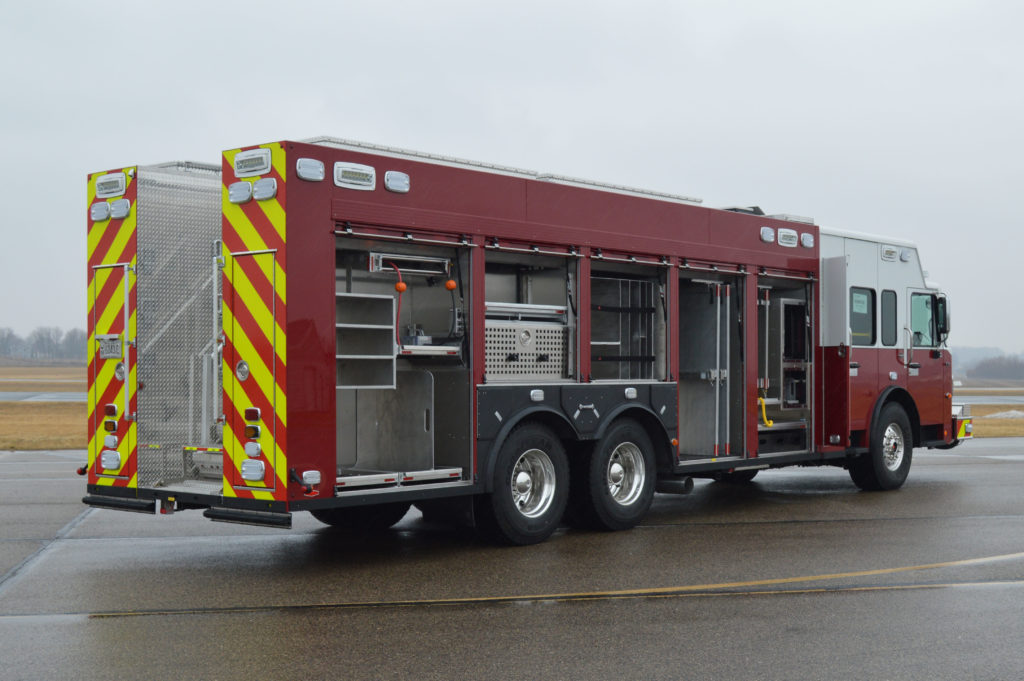

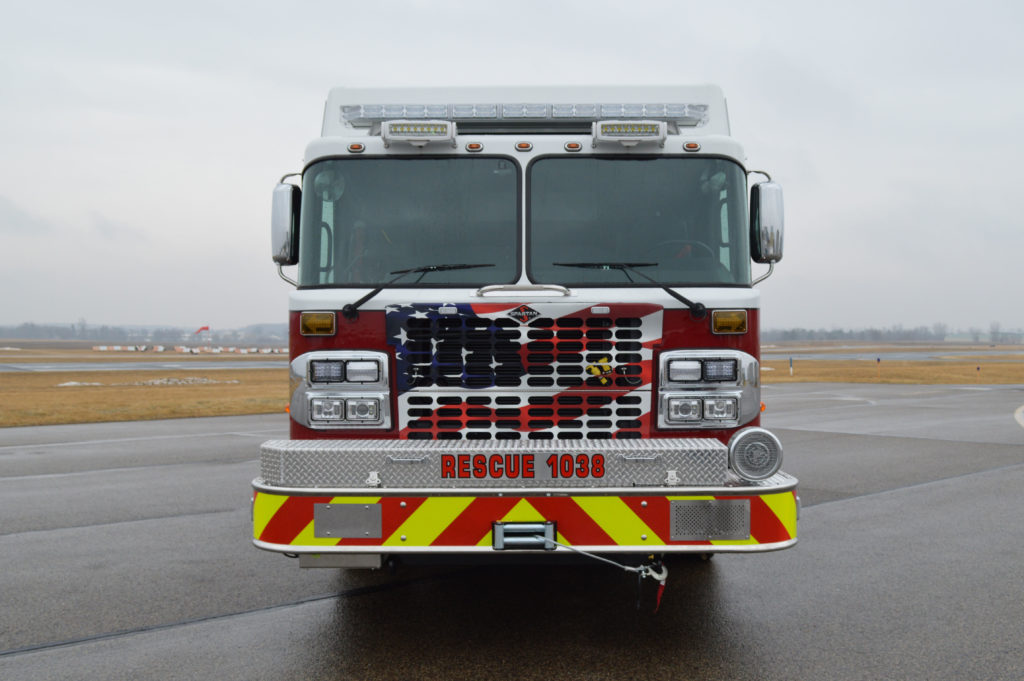

Custom built for Washington Township Fire Department — Sewel, NJ

Truck Type : Rescue & Command

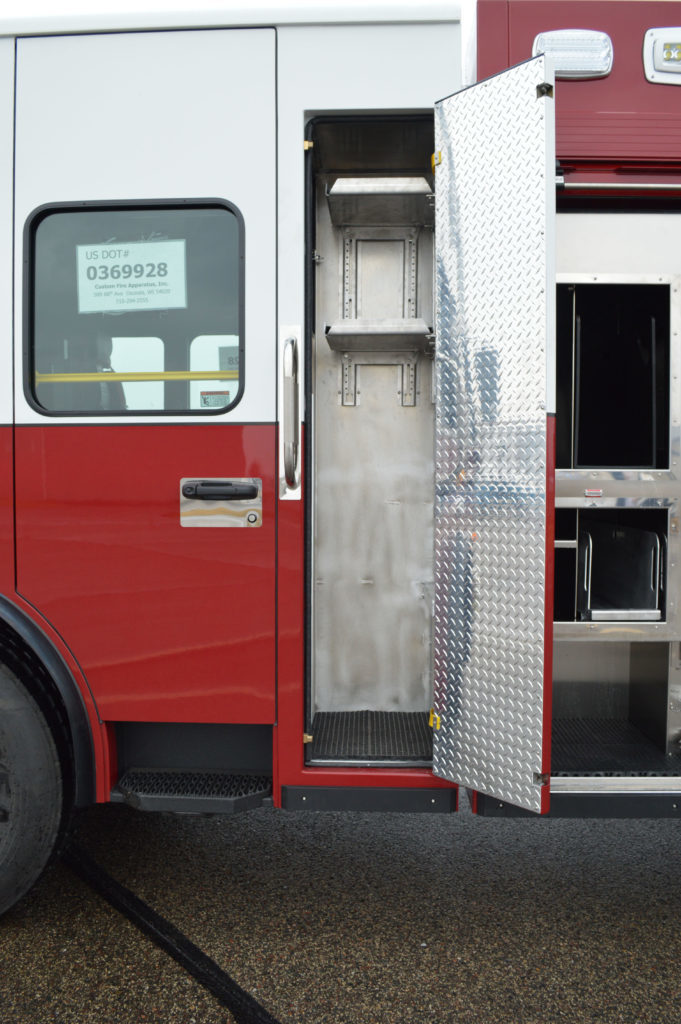

Cab Type : Custom Cab
Deployed : April, 2019

Chassis Model

  • Spartan Gladiator Chassis
  • Cummins ISX12 500hp Engine
  • Allison 4000 EVS Transmission

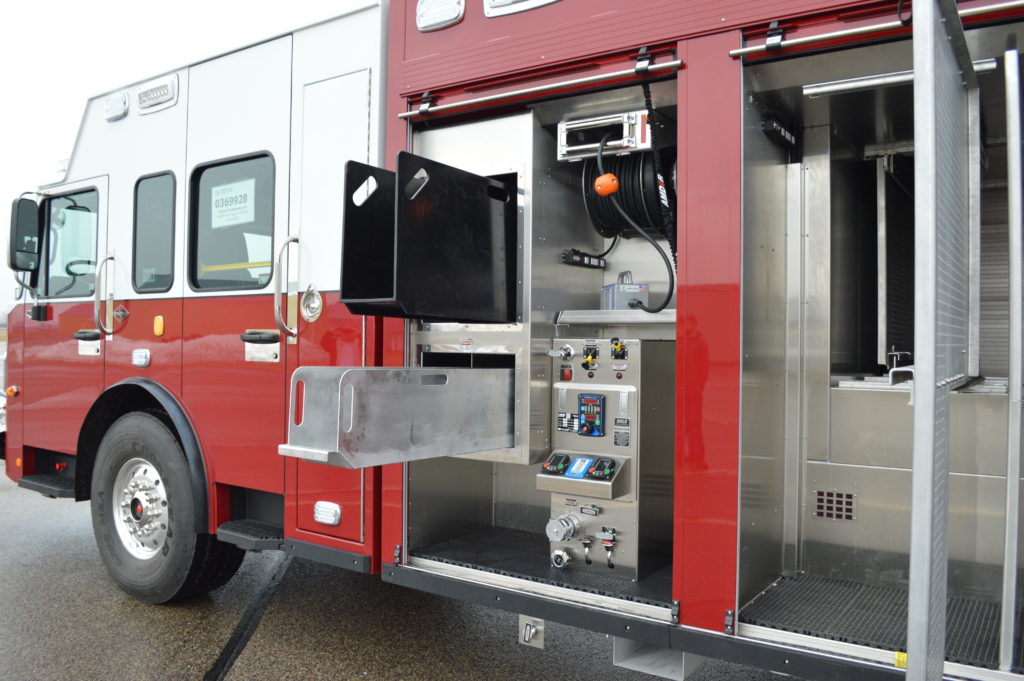

Fire Pump System

  • Hale 300gpm Pump
  • Fire Research Pump Boss Pressure Governor
  • Hale ESP Priming Pump
  • 3″ Driver Side Suction
  • Front Bumper 2″ Preconnect Discharge
  • Transverse 2″ Speedlay Discharge
  • 300-Gallon Poly Water Tank

Roof

Special Features

Special Features

  • Removable Speedlay Hosebed
  • Under Body Winch Receivers
  • Encapsulated Roll-Up Door Protection
  • Roll-Up Door Pull-Down Straps
  • Upper Storage Pods

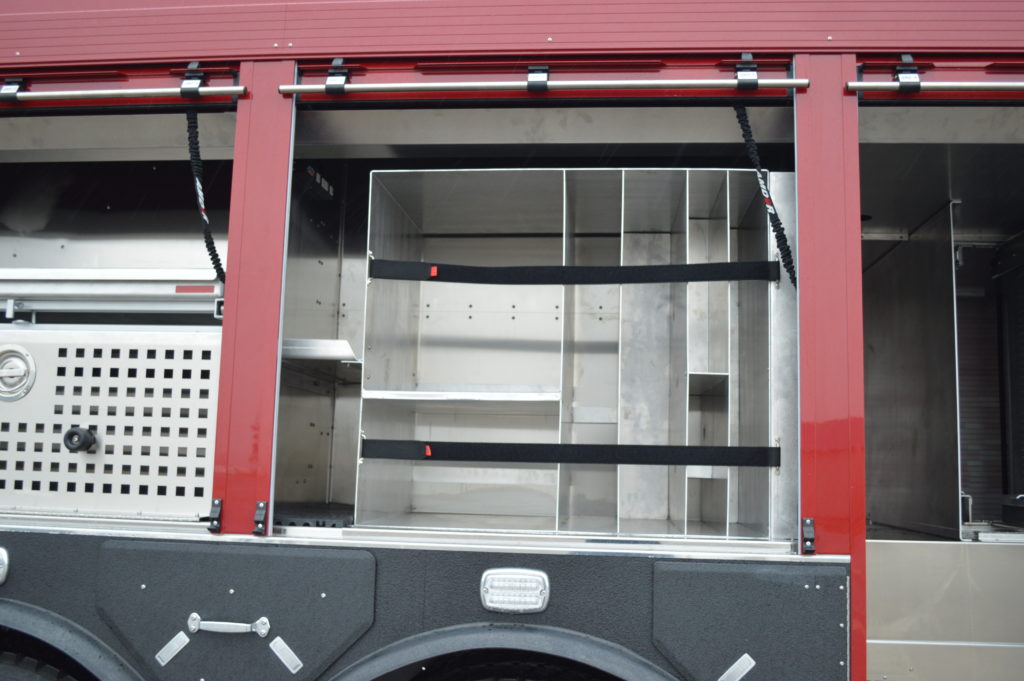

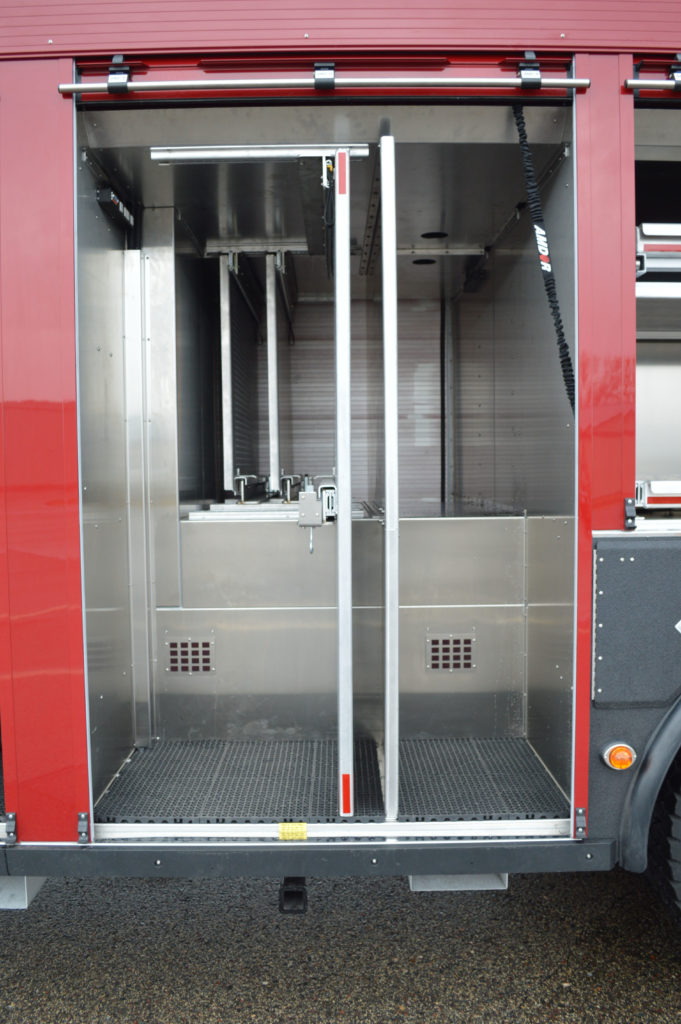

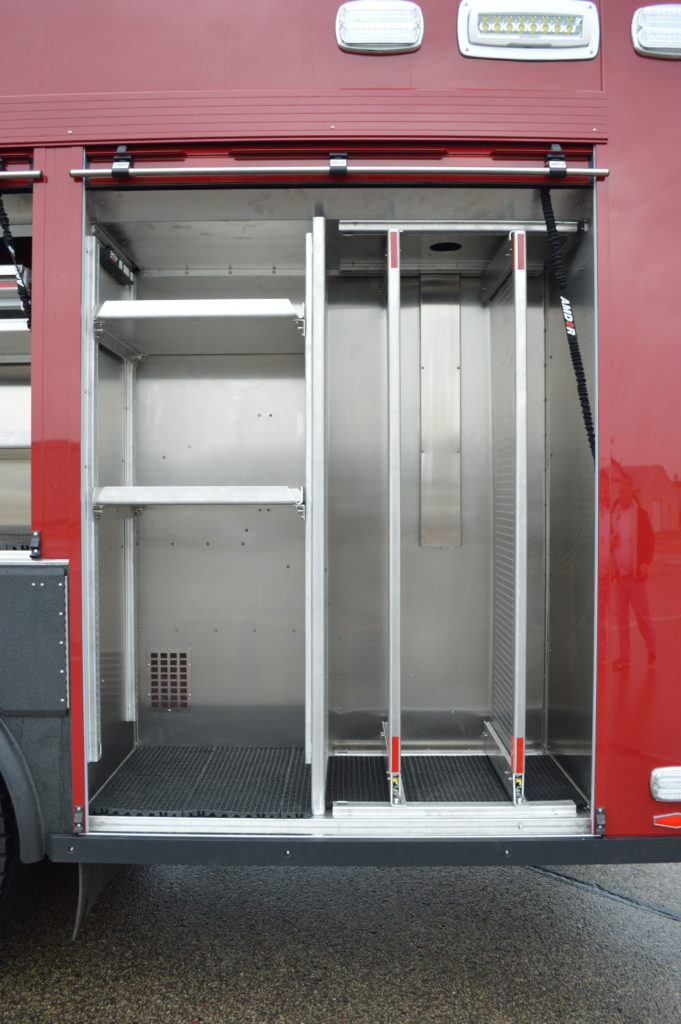

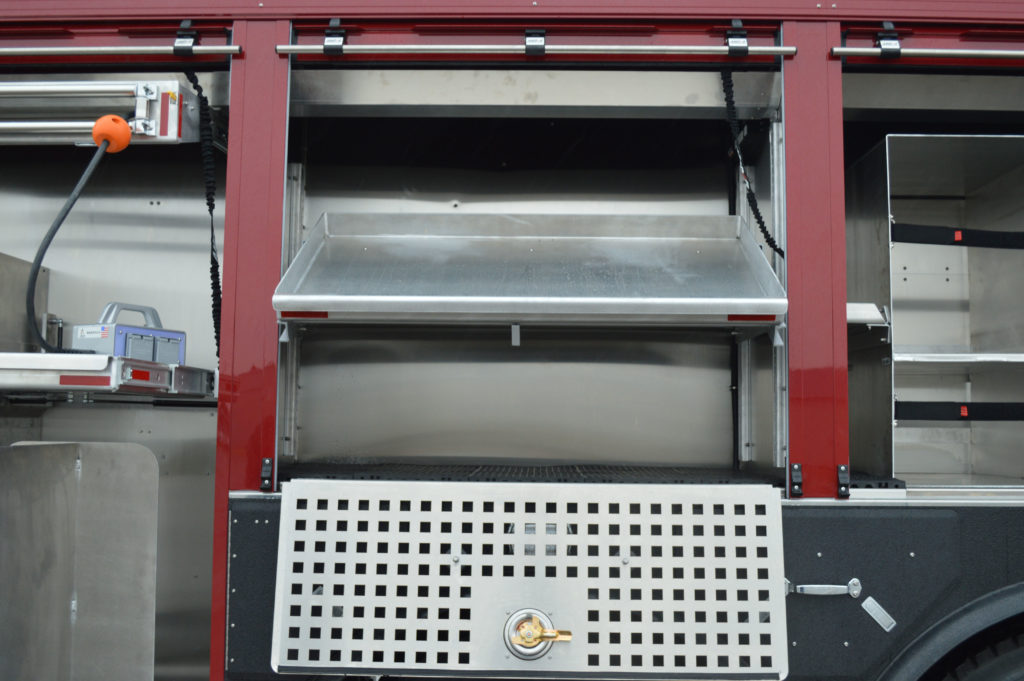

  • Adjustable Compartment Shelving

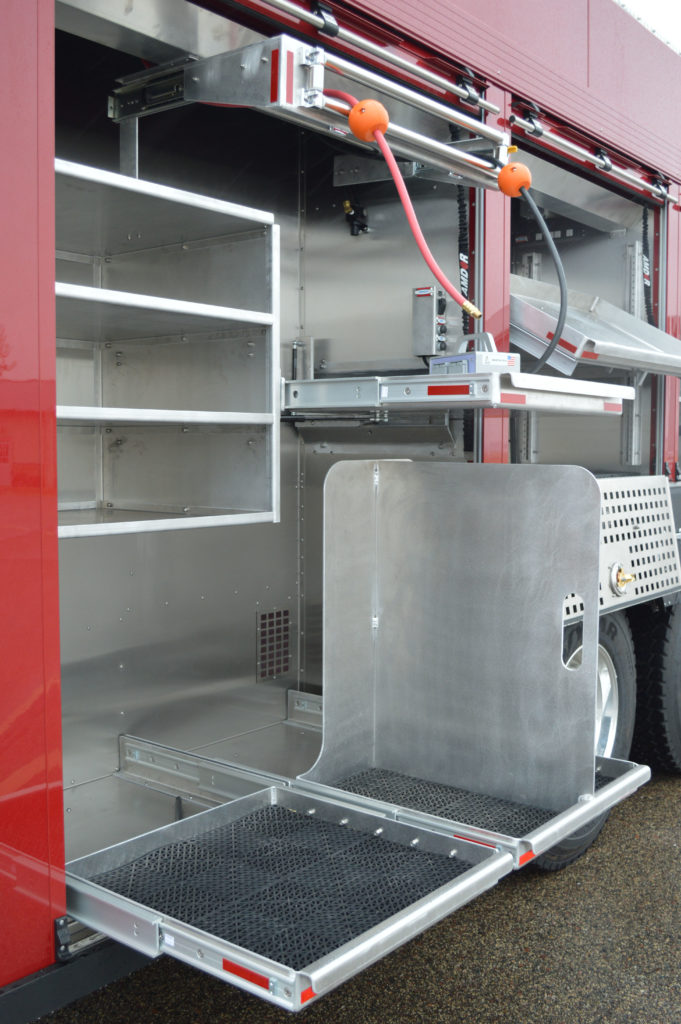

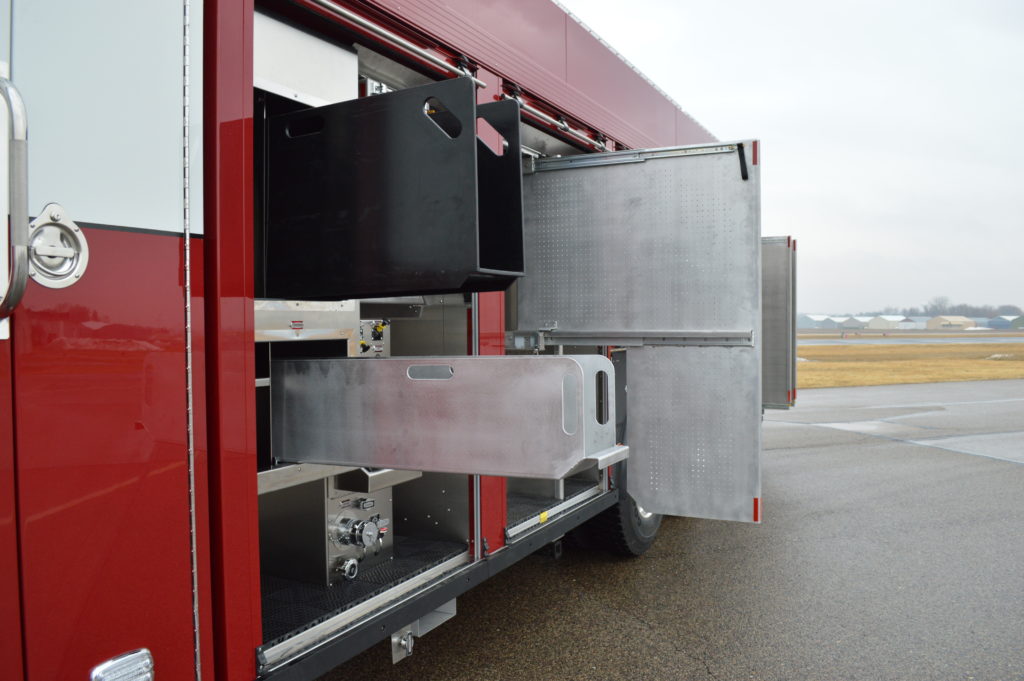

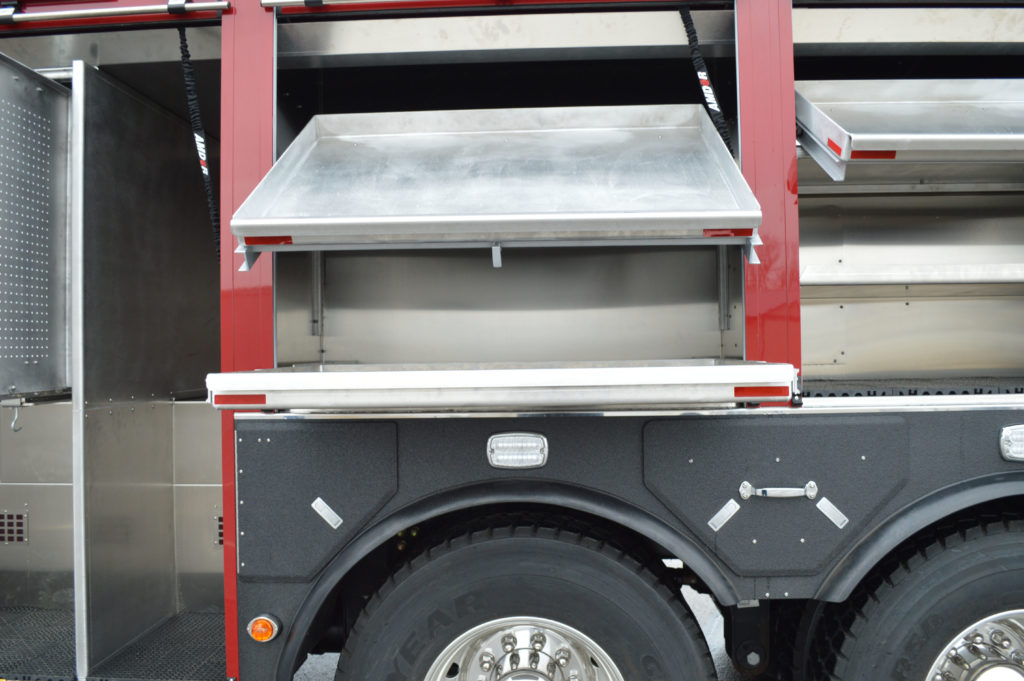

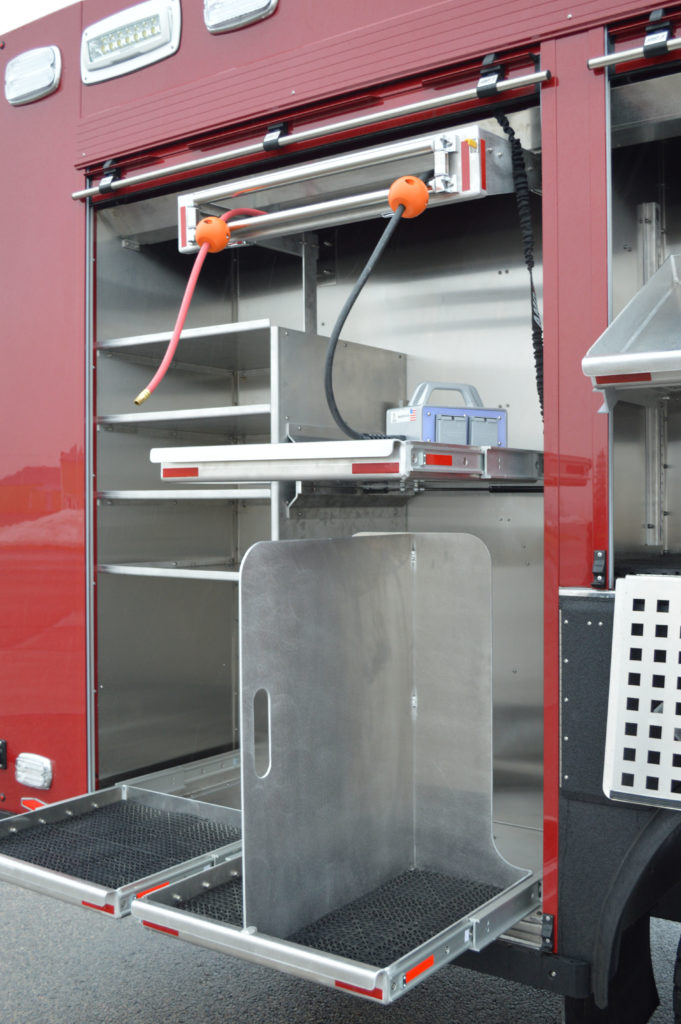

  • Pull-Out Compartment Trays

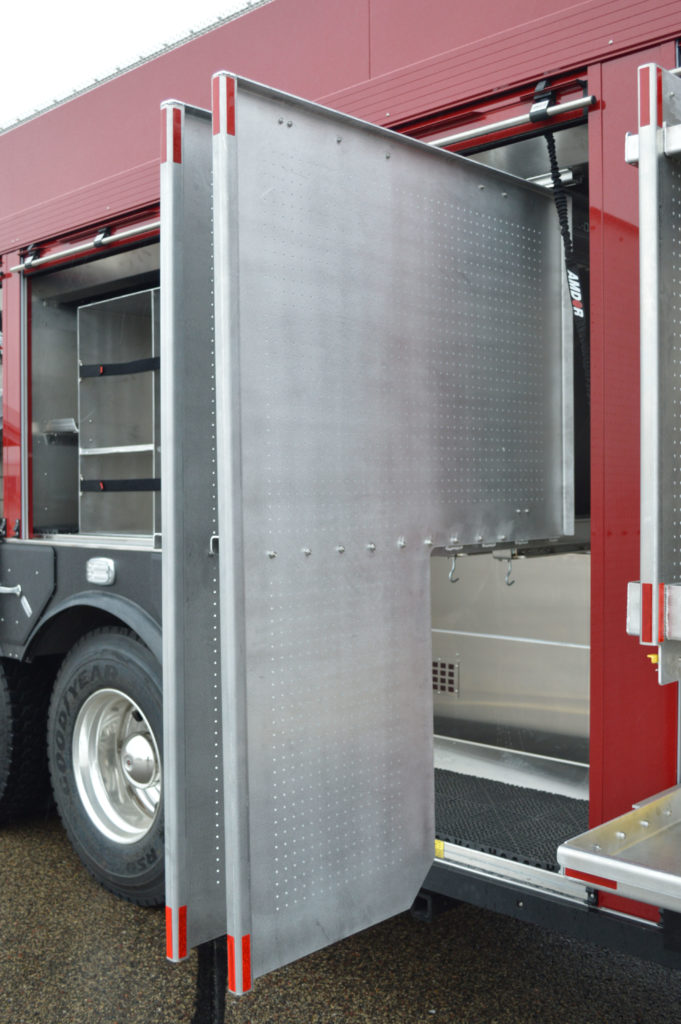

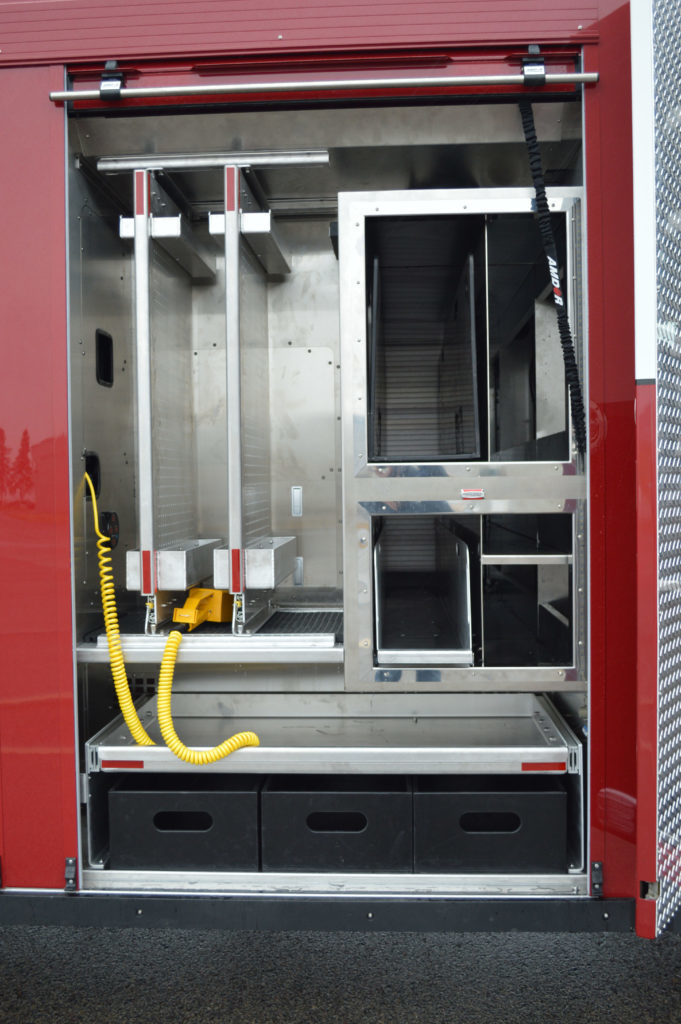

  • Pull-Out Tool Boards
  • Custom Tool Box
  • SCBA Cylinder Storage Rack
  • Air Bag Storage Rack
  • Hannay Air Hose Reels
  • Extendable Roller Tray w/ Roller Guide
  • Pull-Out Floor Dry Dispensers
  • Wheel Well SCBA Cylinder Storage

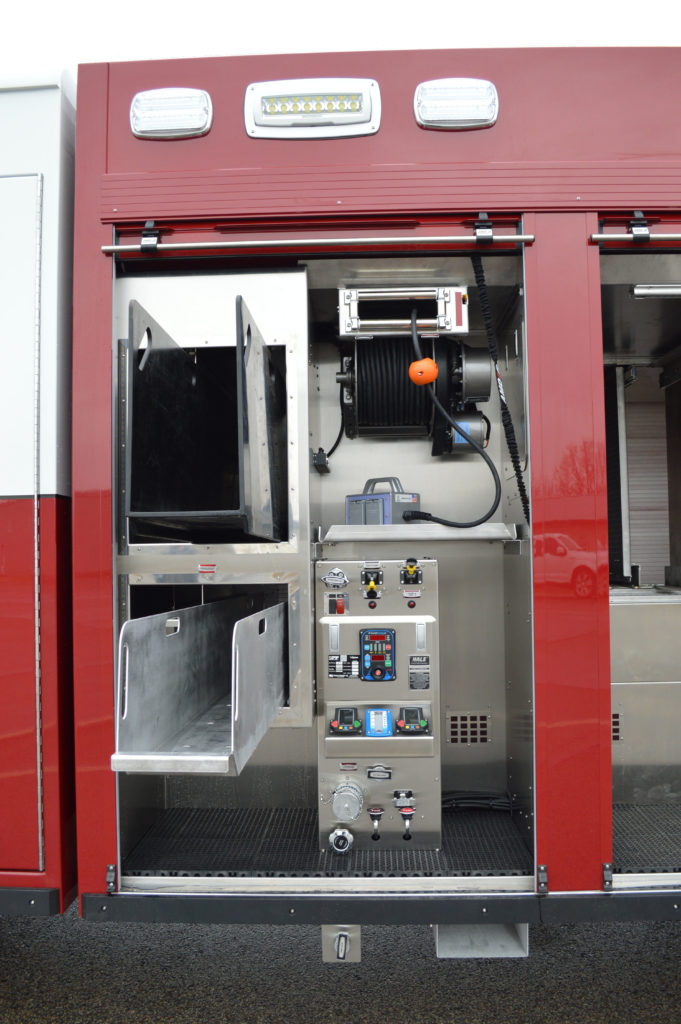

  • Hydraulic Extrication Tool Pump Trays and Board
  • Harrison 12kW Hydraulic Generator
  • Power Rewind Electric Cord Reels
  • Will-Burt Nightscan Light Tower

Exterior Lighting

  • LED Compartment Strip Lights
  • Storage Pod Under-Lid Lighting
  • LED Step Lights
  • LED Marker Lights
  • Under Body and Under Cab Lights

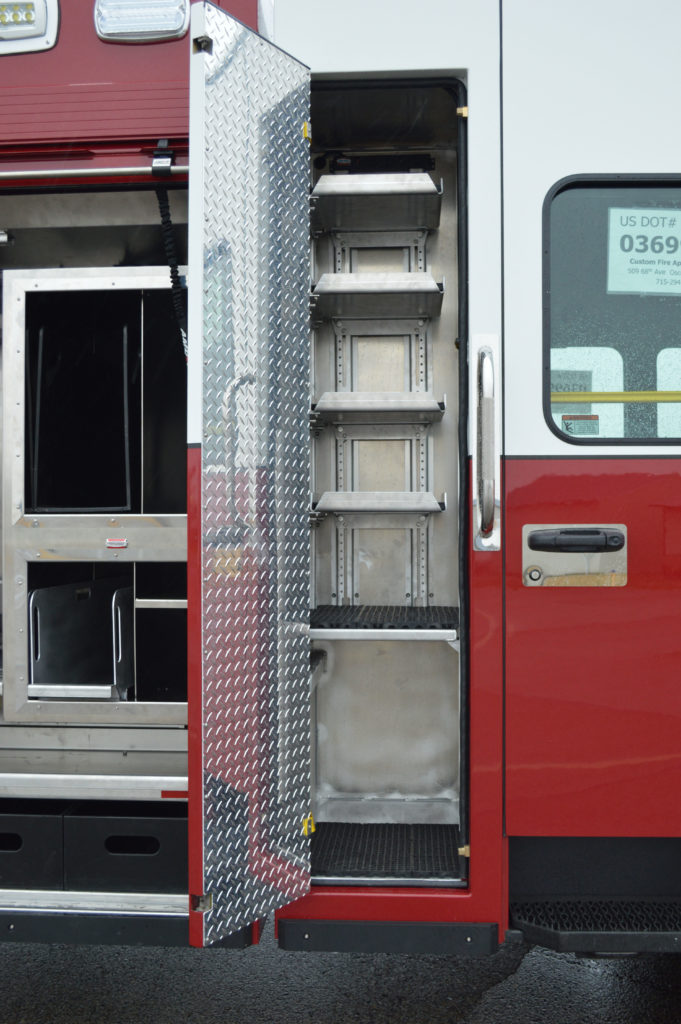

  • Stairway Lights
  • Akron Scene Lights
  • Tripod Lights

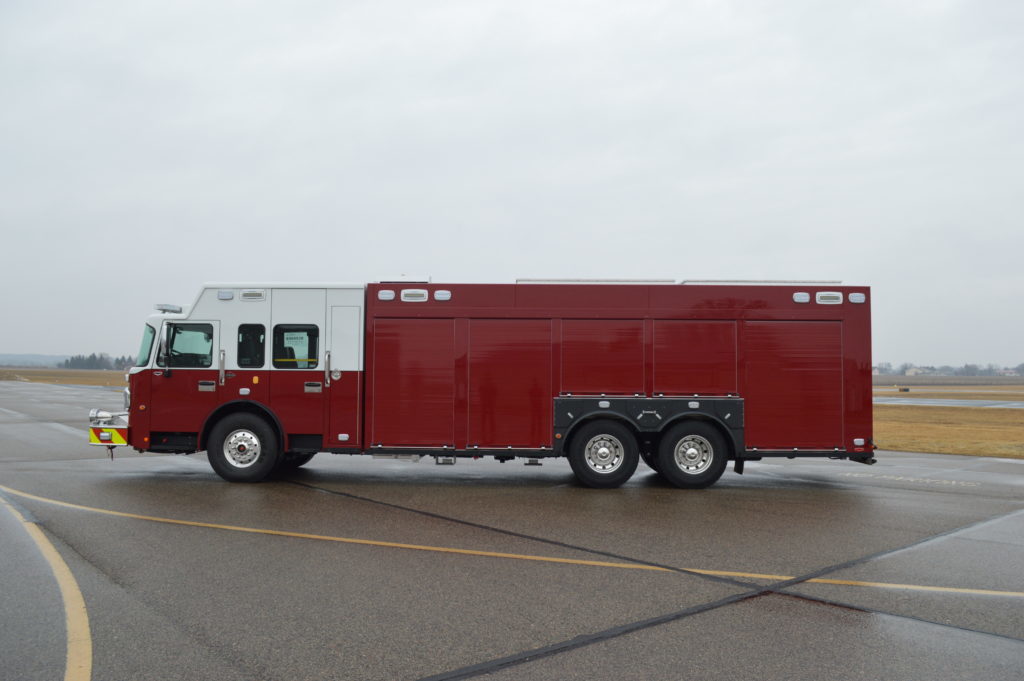

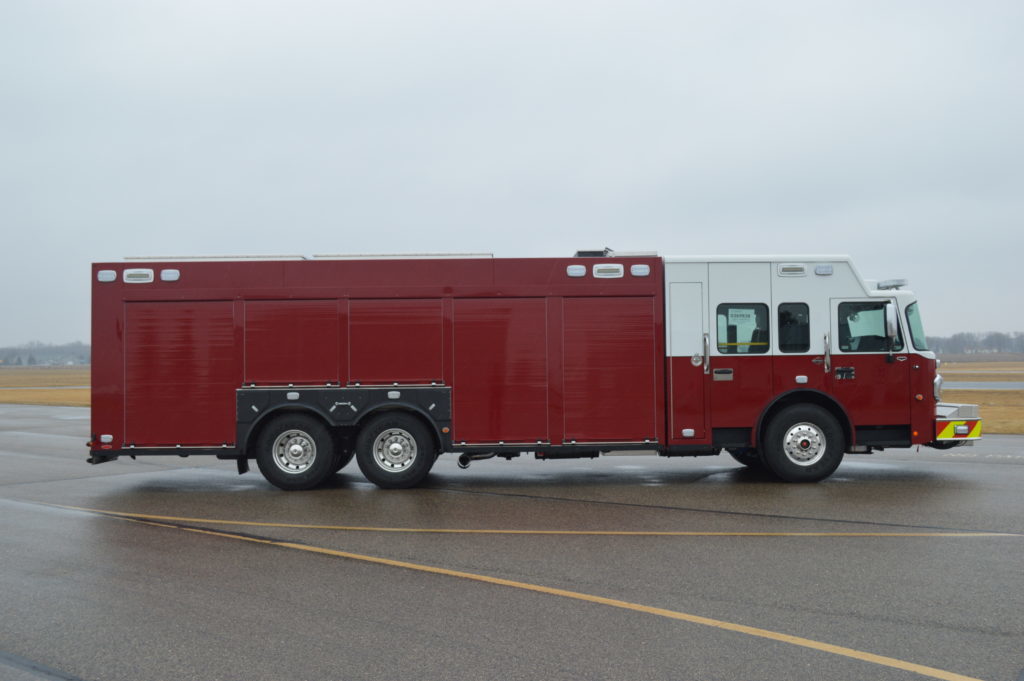

Vehicle Dimensions

  • Overall Height 10′ 11″
  • Overall Length 40′ 2″
  • Wheelbase 20′ 6″
  • Weight with Water 45,270 Lbs.

Mike Smith, Absolute Rescue's Editor in Chief, is a veteran of the fire/rescue service in Michigan, who also works in the automotive industry as a designer. Have an idea of suggestion for the site? Contact Mike here

Rescue Rigs

Whitehorse Heavy Rescue

Published

on

Heavy Rescue

Checkout the new SVI Trucks Heavy Rescue built for the Whitehorse, YT (Canada) Fire Department.  It is a 20′ aluminum SVI-body mounted on a 20″ raised-roof Spartan Metro Star chassis powered by a 450HP Cummins L9 engine.

Overview

This slideshow requires JavaScript.

Compartments

This slideshow requires JavaScript.

Cab

This slideshow requires JavaScript.

Roof

This slideshow requires JavaScript.

Rear

This slideshow requires JavaScript.

Bumper



Continue Reading

Rescue Rigs

Easton, MD Heavy Rescue

Published

on

Heavy Rescue

The Easton, MD Volunteer Fire Department’s new Sutphen Monarch heavy-duty chassis with a 450HP Cummins L9 engine. The apparatus features a Command Light CL series light tower, a Ramsey H800 20,000-lb. hydraulic driven winch, Hannay low- and high-pressure air hose reels, a Norcold 3.6 cu.ft. refrigerator/freezer and much more.

Overall

This slideshow requires JavaScript.

Compartments

This slideshow requires JavaScript.

Cab

This slideshow requires JavaScript.

Roof

This slideshow requires JavaScript.

Bumper

This slideshow requires JavaScript.

Rear

This slideshow requires JavaScript.

Continue Reading

Rescue Rigs

Alexandria’s Seagrave Heavy Rescue

Published

on

Heavy Rescue

Here is a Custom built Heavy Rescue on a Seagrave Chassis for the Alexandria Fire Department in Alexandria, VA.

This slideshow requires JavaScript.

Chassis Model

Seagrave Marauder Chassis
Cummins ISX12
Allison 4000 EVS Transmission

Special Features

6000psi Cascade System
Rescue Body Stairway to Upper Level
Adjustable Compartment Shelving
Pull-Out Compartment Trays
SCBA Cylinder Housing
Custom Tool Box
Rescue Tool Mounting Brackets
Cribbing Racks
Air Bag Rack
Hydraulic Rescue Tool Hose Reels
Electric Cord Reels
Wheel Well Storage Compartment
Wheel Well Winch Receivers
Under Body Winch Receivers
Overhead Storage Pods
Under Body Pull-Out Steps
Hose Reel Guides
Harrison Hydraulic Generator

Apparatus Body

Concealed Bolted Construction
Walk-Around Style Rescue Body
Stainless Steel Body Material
Stainless Steel Subframe
Hinged and roll-Up Compartment Doors

Emergency Warning Devices

Whelen LED Warning Lights
Electronic Siren and Speaker
LED Lightbar

Exterior Lighting

Compartment Interior Lighting
Storage Pod Lighting
Walkway and Work Area Lighting
Rear Step Lights
LED Marker Lights
LED Tail Lights
Under Body and Under Cab Lights
Whelen Scene Lights

Vehicle Dimensions

Overall Height 9′ 11″
Overall Length 35′ 3″
Wheelbase 18′ 8″
Weight 37,700 Lbs.

Compartments

This slideshow requires JavaScript.

Roof

This slideshow requires JavaScript.

Cab

This slideshow requires JavaScript.

Miscellaneous

This slideshow requires JavaScript.
