The roads are no stranger to unique vehicles. One unique vehicle is a broadcast or news truck. As firefighters, we have a keen sense to notice a news truck on scene of an incident. Usually it is setup a colleague to get recorded and put on the local news so they must buy lunch or dinner. However, news trucks have a substantial amount of weight added in unusual locations.
I wanted to learn a little more about the weight of these vehicles that are out on the road so I contacted Rolltechs Specialty Vehicles and received some information from Tony Beigel. Rolltechs Specialty Vehicles starts with a factory vehicle like a Mercedes Sprinter or a Ford Transit. Equipment like Flooring, mast, on-board generator, cabinets/work stations, air conditioners, and the AV equipment. Once the company up-fits the vehicles the final weight is close to the GVWR ratings. A good estimate of the added weight is 3000 lbs. Keep in mind that this includes: Flooring, some sort of mast, an on-board generator, cabinets/work stations, Air Conditioners, and then the AV equipment. So a good idea of that weight would be around 3000 lbs. The Gens themselves are around 800 lbs. I am excluding any passengers.

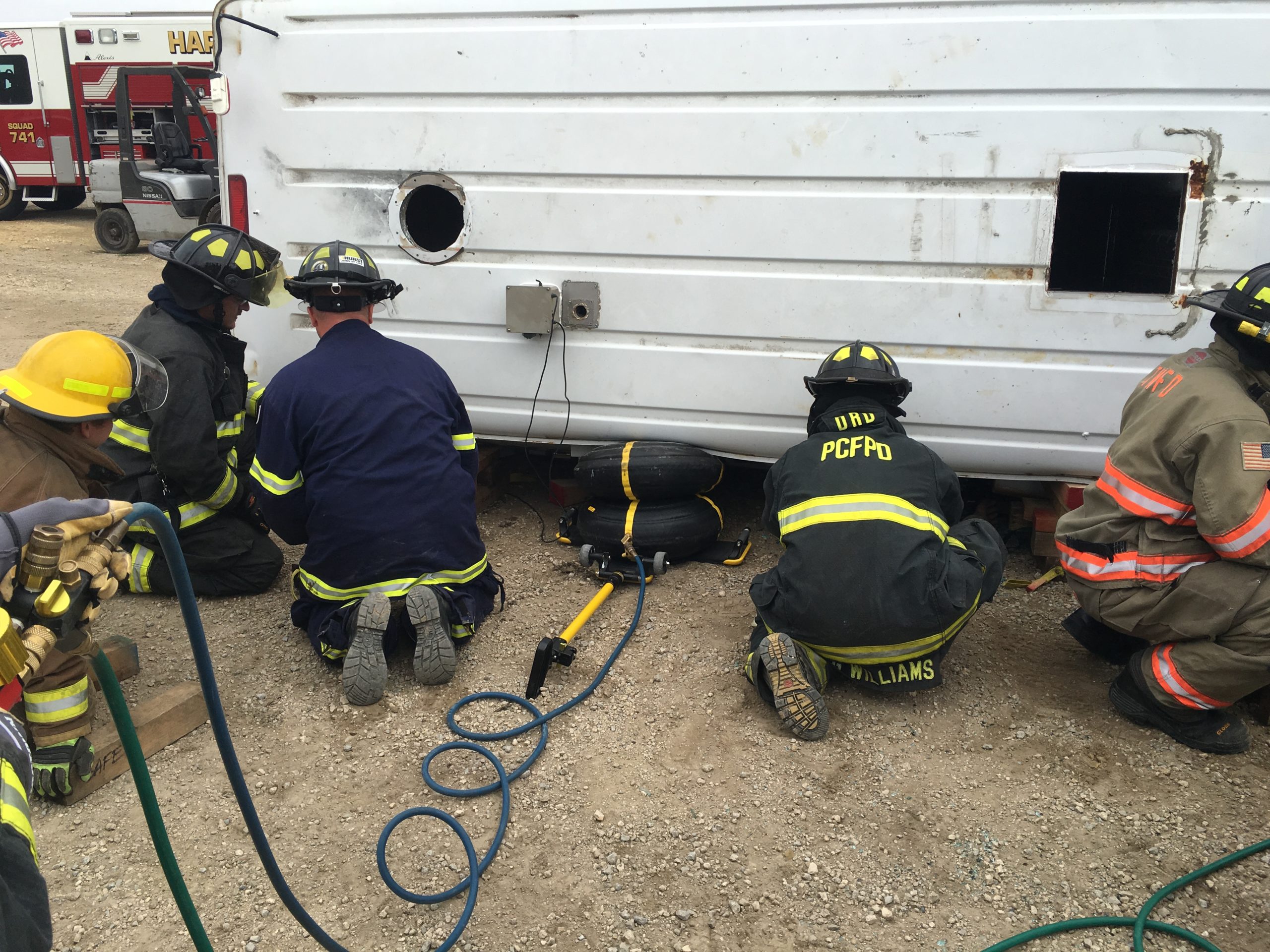

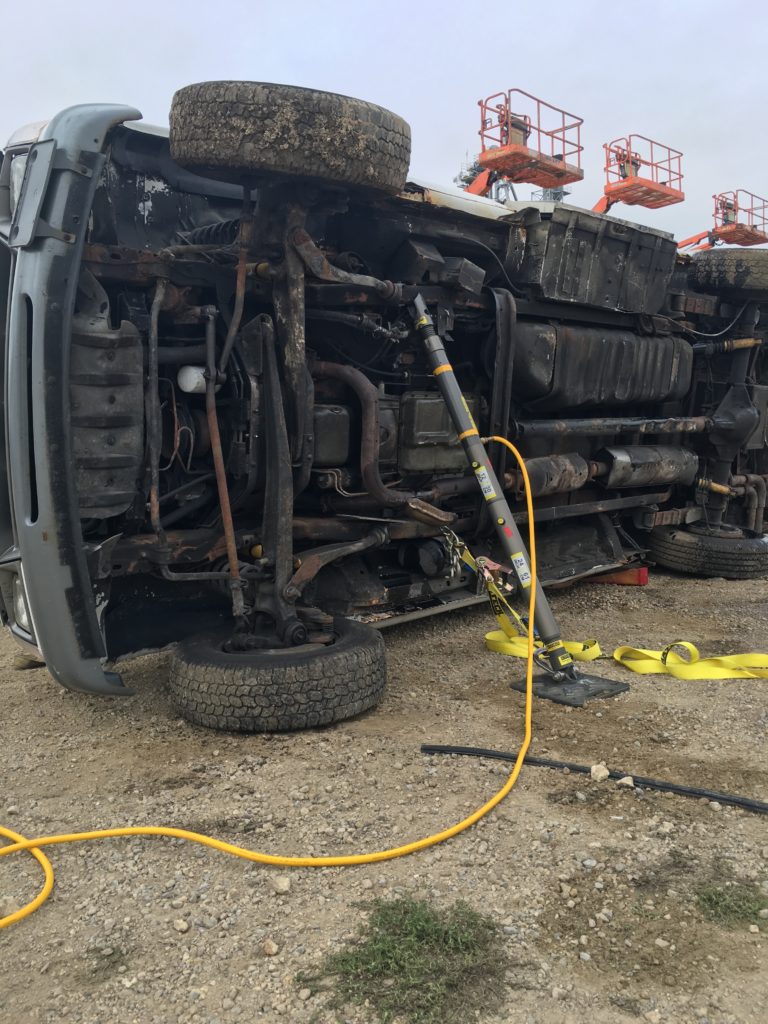

Below are pictures from the Crunch Time Extrication Learning Symposium several years ago. One of the vehicles available for training was an old Econoline news van. Even with much of the equipment removed, the reinforcements left added weight in the rear of the van the affected the center of gravity.
Large Animal Rescue
Working with their past experince, the Patterson Fire Department’s completed their 4th horse rescue in the past several years.
Per the post from the Patterson Fire Department’s Facebook page:
At 0732, 25th of August 2021, the Patterson fire department was dispatched for a public assist to a local farm. Patterson’s heavy rescue, 22-6-1, arrived on scene and found a 31-year-old male horse, named “Dozer”, in distress. He had apparently fallen and managed to get himself stuck between a rock and a fence line. At first, the crew attempted to assist the horse in getting up by shifting his position. It became apparent that additional equipment was going to be needed to help Dozer out since he had become too exhausted to get up on his own. After some discussion, it was established that the best plan of action was to use a Paratech bipod system. It would be used as an artificial high directional with TU-32 griphoist’s assistance to lift the horse up. With a lot of sweat and effort, the crew was able to lift the horse up onto his feet. After some much-needed fluids and rest, we were happy to see Dozer trot away, unassisted.
An interesting fact, this is Patterson Fire Department’s 4th horse rescue in the past several years, all with successful outcomes.
Photos below from Andrew Akin
Outside the Box Anchor
Outside the Box Anchor
In the pictures below a Paratech base plate is used with pickets as an anchor point on soil/grass. The picket ratings currently used date back decades and are for loamy soil. A single picket is rated at 700 pounds, a two-picket system is 1400 pounds and a three-picket system is 2000 pounds. The angle is always the biggest issue as well as consistent depth and alignment.
A Paratech hinged 12″ Base plate W/Anchor Ring has eight (8) holes to accept 1” (2.5 cm) pickets. The built-in anchor ring absorbs more than 2 tons with a 4:1 safety factor. It is easy to use as a fixed point.
Lifting & stabilization training
Checkout this training from Connecticut Custom Fire Training LLC. and make sure you follow their Facebook page!
Checkout this training from Connecticut Custom Fire Training LLC. and make sure you follow their Facebook page! Students included members from Suffield, Windsor Locks, Enfield, and CT ANG Fire Departments taking part in a day of lifting & stabilization training. In the pictures below, are students utilizing their Paratech Struts & Hydrafusions to stabilize, lift, and capture the tree to create space for extrication.
