Vehicle Rescue

Run Flat Tires – Stabilization

Run flat tires are nothing new and I’ve been around for quite a while. The difference is more vehicles are starting to include them as standard equipment from the factory. Run flat tires are divided into 3 groups, Self-supporting, Self-sealing, and Auxiliary-supported.



run-flat-extrication-self-supported-extricationNew Vehicle Technology

Run flat tires are nothing new and I’ve been around for quite a while. The difference is more vehicles are starting to include them as standard equipment from the factory. Run flat tires are divided into 3 groups, Self-supporting, Self-sealing, and Auxiliary-supported. These tires will affect extrication operations during stabilization and possibly once parts of the vehicle are removed.

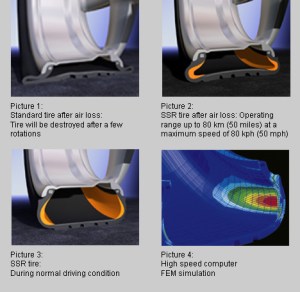

Run flat tires are designed to support the weight of the vehicle without any air in the tire. This is accomplished by several different types of run flat tires. The most commonly used run flat tire is a self supporting. A self-supporting run flat tire has a reinforced sidewall. Self-sealing tires use a self-sealing innerliner or similar feature to seal up small punctures. Auxiliary supported tires have a reinforcement that is attached to the wheel rather than the tire.


Auxiliary-supported Run Flat Tire

Auxiliary supported tires are typically found on armored vehicles. Many people may think armored vehicle to be a brinks money truck. However, with all of the turmoil around the world many executives and famous people have armored vehicles that look identical to a model you would find on the showroom floor.

One technique of stabilization of the vehicle is putting cribbing underneath the rocker panel and then pulling the valve stems so the vehicle can slowly lower onto the craving. When a vehicle has Run flat tires the vehicle may not securely rest on the cribbing.

By no means are run flat tires in issue for firefighters on an extrication seen. If the vehicle has run flat tires it would most likely be discovered after the initial stabilization is been completed and the firefighter assigned a stabilization checks the stabilization. If the vehicle didn’t completely rest simply placing a Wedge in may be enough to secure it.


Just like other New Vehicle Technology, run flat tires are another feature that rescuers need to have an awareness of.  Run flat tires will not change our extrication techniques, rather require rescuers to be conscious of how a vehicle reacts to each step we talk during an extrication.

Mike Smith, Absolute Rescue's Editor in Chief, is a veteran of the fire/rescue service in Michigan, who also works in the automotive industry as a designer. Have an idea of suggestion for the site? Contact Mike here

School Bus

Zero-emission Electric School Bus

There are about 480,000 school buses in the United States with about 95 percent of them run on diesel. How many will change to electric?



Electric School Bus

There are about 480,000 school buses in the United States with about 95 percent of them run on diesel.  Currently, electric buses can be about two to three times as expensive as diesel models.  However,  school administrators would ultimately save about $2,000 on fuel and $4,400 in maintenance every year. Many school districts across the United States are adding zero emission or hybrid school buses into their fleets.

States across the country are looking into using their legal settlement funds from Volkswagen defeat device settlement to buy electric school buses.  Just like electric passenger a decade again were few and far between, electric school buses are sparsely found in school district’s fleets.

School Bus Types

Below is a quick review of the 4 different types of school buses used in the United States.


School Bus Configurations[1][2]
(Images of Contemporary School Bus Models)
Configuration Type A2009–2011 Trans Tech/Ford Type BIC BE-Series Type CType C school bus (Blue Bird Vision) Type DType D school bus (Thomas Saf-T-Liner HDX CNG)
Passenger Capacity
≥10 typically 16-36 ≥10 typically 30-36 ≥10 typically 36-78 ≥10 typically 54-90
  • Type A-I: ≤ 14,500 pounds (6,600 kg)
  • Type A-II:14,500 pounds (6,600 kg) and up
  • Type B-I: ≤ 10,000 pounds (4,500 kg)
  • Type B-II: between 10,000–21,499 pounds (4,536–9,752 kg)
  • over 21,500 pounds (9,800 kg)
  • (typically between 23,000–29,500 pounds (10,400–13,400 kg))
  • over 20,000 pounds (9,100 kg)
  • (typically between 25,000–36,000 pounds (11,000–16,000 kg))
  • A bus body placed on a cutaway van chassis with a left-side driver’s door
  • Single or dual rear wheels on drive axles.
  • A bus body mounted to either a stripped chassis or a cowled chassis
  • The entrance door is mounted behind the front wheels
  • In most versions (stripped-chassis models), the engine compartment is located partially inside the passenger compartment next to the driver and the hood is significantly shorter than that of conventional buses (similar to step vans)
  • A bus body mounted to a cowled medium-duty truck chassis
    • In the past, the chassis was often supplied from another manufacturer, but more recently, the chassis manufacturer and the bus body manufacturer are the same company.
  • Although typically of cowled-chassis chassis design, a few Type C buses are of cutaway-cab design.
  • The entrance door is mounted behind the front wheels.
  • The engine is mounted forward of the windshield
  • A bus body mounted to a separate chassis.
  • The entrance door mounted in front of the front wheels.
  • Single rear axle or (very rarely) tandem rear axles
  • The engine is mounted next to the driver inside the bus (front-engine/ “FE”), in the rear of the bus behind the rearmost seats (rear-engine/ “RE”), or in between the axles underneath the floor (“amidship” or “mid-engine”)
  • The last mid-engine Type D school buses were manufactured when Crown Coachceased operations in 1991.


Type A Electric School Bus

Blue Bird offers electric Type C & D configuration school bus.

Propane School Bus

Green and blue bumpers and other surfaces on school buses can identify a school as electric powered. However, green is also used for school buses powered by Compressed Natural Gas (CNG) and Propane.

Continue Reading

Heavy Rescue

Fort Worth, TX Fire Department Heavy Rescue 38

Another awesome SVI Truck headed to the Lone Star State!



Heavy Rescue

Checkout the SVI-built Heavy Rescue for the Lone Star State.  The Fort Worth rig features a 20′ aluminum body mounted on a Spartan Gladiator LFD chassis with a 24-inch raised roof and powered by a Cummins X15 505HP engine. The new walk-around Heavy Rescue boasts a powerful 180,000-lumen LED Command Light CL602A-W4 light tower, OnScene Solutions heavy-duty aluminum cargo slides and much more!

Below are links to more information about this heavy rescue:

Overall Pictures

This slideshow requires JavaScript.

Compartments Pictures

This slideshow requires JavaScript.

Cab Pictures

This slideshow requires JavaScript.

Rooftop Pictures

This slideshow requires JavaScript.

Bumper Pictures

This slideshow requires JavaScript.

Rear Pictures

This slideshow requires JavaScript.

Continue Reading

School Bus

HydroFusion Ram

HydraFusion Struts used as ram for a dash roll?



HydraFusion Strut Ram

The HydraFusion Struts were a game changer when PARATECH released the lifting/stabilizing device a few years back at FDIC. Rescuers can lift up to 10 U.S. Tons (9 metric tons) and to stabilize up to 20,000 lbs. with the tool. However, PARATECH’s HydraFusion Struts are not limited to just those two functions. The HydraFusion Struts can move metal!

I first ran across pictures of HydraFusion Struts used as ram from pictures that Brock Archer (Advanced Extrication) and Randy Schmitz ( Founder/Owner of Schmitz Mittz). Last weekend at Crunchtime Extrication, Paratech had one of their trailers at the training event and I had the chance to try a dash roll with a HydraFusion Strut. Take a look at the video below.

A few quick points:

  • You can put the HydraFusion Strut in place to reduce any dash movement during reliefs cuts.
  • HydraFusion Strut are portable and can be moved quickly to a vehicle hundreds of feet of the roadway.
  • Depending on the length of the HydraFusion Strut used, strut extensions can be used to optimize dash movement.
  • Using a HydraFusion Strut as a ram is an option, not always the option.
Below  are a few pictures from the Advanced Heavy Rescue Symposium in Calgary, Alberta, that show HydraFusion Struts used a ram during bus extrication to displace a roof.

This slideshow requires JavaScript.

Continue Reading
